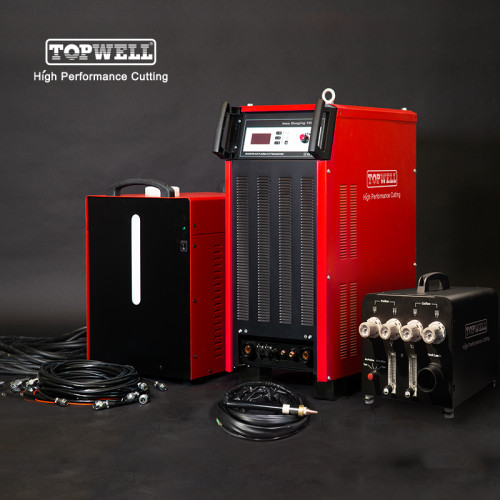

Powerful Inox Gouge 160MAX: High-Definition Plasma Gouging System for Weld Repairing and Root Cleaning
Powerful Inox Gouge 160MAX: High-Definition Plasma Gouging System for Weld Repairing and Root Cleaning
Model
Inox Gouge 160MAX

Item specifics

Input Voltage
380V/440V, 3PH, 50/60Hz
Duty Cycle Rating 40℃(105℉)
160A@100%
Max. Load Power Capacity
40.0KVA

Review

Description

DETAILS
Inox Gouge 160MAX
Compare to the conventional plasma gouging process, the Inox Gouge 160MAX as a high-definition plasma gouging system, achieved more special advantages:
• Multi gas console: make the best applications for any kind metals;
• The best solution for nickle-based alloys;
• Extra high productivity;
• Smooth, clean, consistent gouging without any carburization problems;
• Ready to weld;
• Suitable for manual or mechanized operation methods.

Here is our Inox Gouge 160MAX  video


Typical Application
Weld Repairing
Removal of welding imperfections
(cracks, slag inclusions, dents, etc.)
Weld Repairing
Root Cleaning
root cleaning of finished welds from the reverse side.

Root Cleaning
Typical Application
MORE FEATURES
Side Blowing

Unique side blowing technology provide good track of gouge process,better control of gouging depth and width, which improve gouging efficiency.

• Good Track Of Gouge Process;
• Protect Consumables Lifetime;
• High Effective-deeper Wider.
Side Blowing
Long-life consumables

• Refined torch body structure with extra cooling efficiency;
• Automatic torch protection;
• Automatic ramp-down error protection.
Widely used in shipyard, pressure vessel, electric equipment and other steel structure industries
MORE FEATURES
MORE FEATURES
MORE FEATURES
Capacity
System
Inox Gouge 160MAX
Speed
760-1900mm/min
Standoff
9.5-18mm
Angle
30-45°
Process gases by material
(gouging/shield)
Operating temperature
Carbon Steel
Stainless Steel
Aluminum
O2/Air
H35/N2
H35/N2
Process amps(gouging)
Not all process available for all materials
30-160A
VIDEO

SPECIFICATIONS
Machines
Product Name
Inox Gouge 160MAX
Product Weights & Dimensions
Dimensions(L*W*H)
650x350x840mm
Net Weight
130KG
Basic Specification
Input Voltage
380V/400V, 3PH, 50/60Hz
Input Power
40.0KVA
Rated Output Voltage
200VDC
Max Output Current
160A
Open Circuit Voltage (OCV)
430VDC
Operating Temperature
-10℃~40℃
Duty Cycle Rating 40℃(105℉)
100%@160A
Torch
TPG160 INOX
