PROMIG-250SYN DPulse Synergy Pulse and Double Pulse MIG Welder
Item specifics
- Input Voltage
- 1PH ~ 230V ±15%
- Rated Output(40℃) 60%
- 250A/26.5V
- Features
- Pulse & Double Pulse MIG
- Wire Feeder
- 4-Rollers
Review
Description
DETAILS
Synergy, Pulse, Double Pulse MIG
PROMIG-250SYN DPulse
Multi-Process Capable - Welds Flux-cored, Stick, Pulse MIG, advanced MIG for M.S/S.S.
Pulse MIG Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
Synergic Control - Set weld procedures with one control.
Built-in featured waveform - Provides a smooth, stable arc and superior, repeatable welds.
Dynamic Control - controls the welding arc cone width from a softer arc to a harder arc.
True Pulse MIG For Aluminum
4-Roller wire-feeder

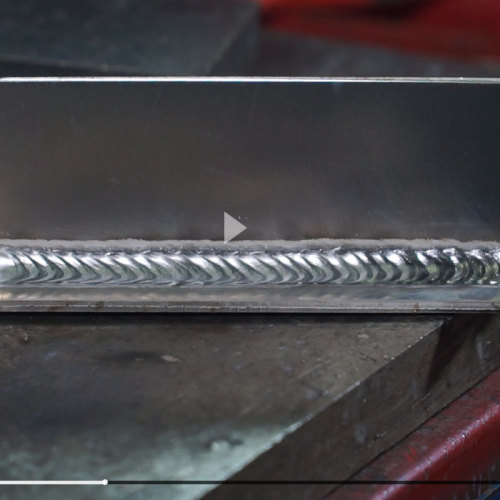

No need to swing, You can easily get a cosmetically pleasing weld seam, with significantly lower and more controller heat input into the workpiece. It results in much lower distortion and less rework, very suitable for welding the thin Aluminum sheets.
By Double Pulse process, the heat input of arc is alternating, effectively reducing the heat input of base metal. It reduces the occurrence of welding defects such as crack.
True Synergy With Jobs-list
| The Job-lists display is easily and intuitively controlled through its graphical user interface.We assembled the perfect welding curve in every Job-No. for highly efficient multi-process welding of carbon steels and stainless steel and aluminum alloys. Operation is easier than ever before. |
3 Steps To Start Perfect Welding
1. Regarding to the Job-List, set Job Number
2. Regarding to the base metal thickness,set welding current
| 3. Go for welding! |
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
ProMIG-250SYN DPulse
|
|
Machines Processes
|
Stick (SMAW) Flux-Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) Double Pulsed MIG (GMAW-DP) |
|
Wire Feeder
|
4-Rollers
|
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
790x250x650mm
|
|
Net Weight
|
32kg
|
Basic Specification
|
Input Voltage
|
1PH ~ 230V ±15%/3PH ~ 400V ±15%
|
|
Input Power
|
11.72KVA
|
|
Output Range
|
MIG: 10A/14.5V ~250A/26.5V MMA: 20A/20.8V~250A/30V |
|
Rated Output(40℃) 100%
|
MIG: 250A/26.5V MMA: 250A/30V |
Polarity | DC |
