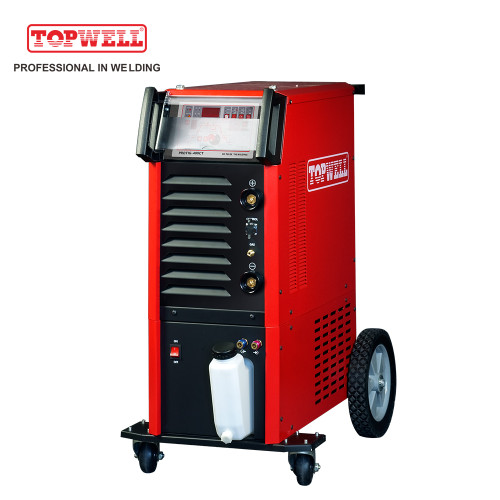

PROTIG-400CT Advanced DC TIG Welder for Heavy Industrial
PROTIG-400CT Advanced DC TIG Welder for Heavy Industrial

Item specifics

Input Voltage
3PH ~ 400V ±15%
Rated Output(40℃) 100%
400A/26V

Product review

Description

DETAILS
Powerful output, Heavy duty for industrial,
Outstanding performance
PROTIG-400CT

Powerful output - 400A@100% Duty cycle.

Advanced Pulse control  - Minimize heat input on thin materials, and provide for a faster freezing weld puddle for uphill welding on curved surfaces such as process piping. The TIG pulse also helps moderate filler metal deposition for consistent bead appearance.

High-Frequency start - Makes it easy to establish an arc under a variety of conditions.

Hot Start & Arc Force - Makes it easy to start and powerful arc in MMA welding

Advanced Pulse TIG
Conventional Pulse TIG
Typically from 0.2 to 10 PPS. Provides a heating and cooling effect on the weld puddle and can reduce distortion by lowering the average amperage. This heating and cooling effect also produces a distinct ripple pattern in the weld bead. The relationship between pulse frequency and travel speed determines the distance between the ripples. Slow pulsing can also be coordinated with filler metal addition and can increase overall control of the weld puddle.
High Frequency Pulse TIG
In excess of 40 PPS, Pulsed TIG becomes more audible than visible causing increased puddle agitation for a better as-welded microstructure. Pulsing the weld current at high speeds between a high Peak and a low Background amperage can also constrict and focus the arc. This results in maximum arc stability, increased penetration and increased travel speeds.
Pressure Pipelines

ProTIG-500CT + Cold Wire Feeder + Carriage

This system is a solution for pressure pipelines. It is 500A @ 100% Duty Cycle. With the precise arc control, it delivers deep penetration and high-quality welding seams.


SPECIFICATIONS
Machines
Product Name
ProTIG-400CT
Machines Processes
Stick (SMAW)
TIG (GTAW)
Pulsed TIG (GTAW-P)
Product Weights & Dimensions
Dimensions(L*W*H)
960x420x900mm
Net Weight
70KG
Basic Specification
Input Voltage
3PH ~ 400V ±15%
Input Power
TIG: 14.39 KVA
MMA: 14.21 KVA
Output Range
TIG: 3A/10.1V~400A/26V
MMA: 20A/20.8V~315A/32.6V
Rated Output(40℃) 100%
TIG: 400A/26V
MMA: 315A/32.6V
Polarity
DC
SPECIFICATION
